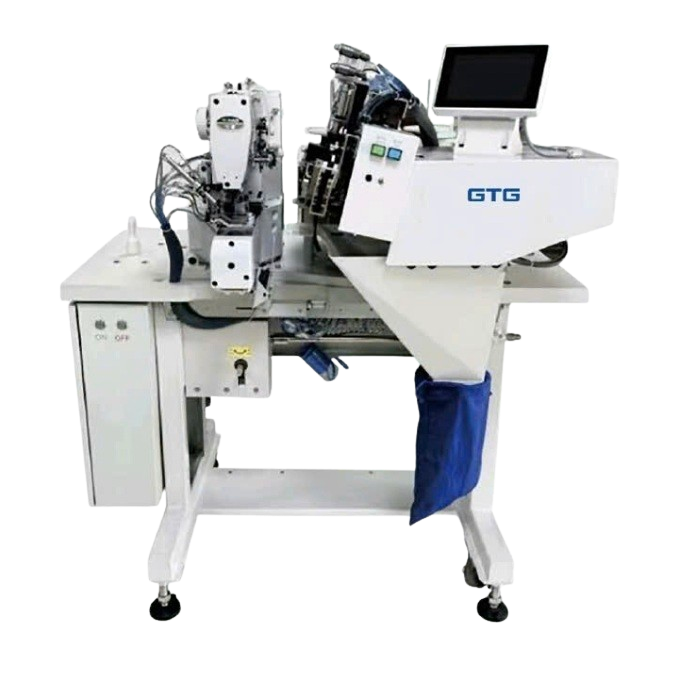

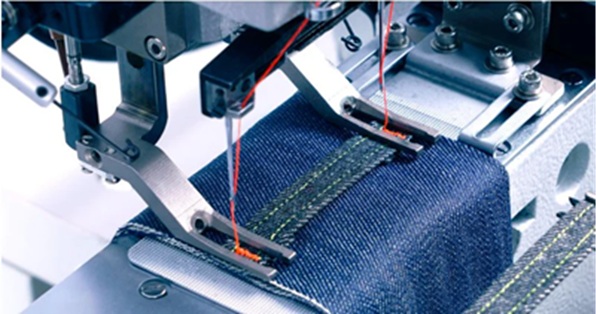

Automatic belt loop setter

The machine time is 1.2 seconds pre belt-loop, which ensures increased productivity. The feed mechanism incorporates a computer-controlled X-Y method to allow the operator to change the number of stitches and sewing sizes.

Specifications

Model name	GT-254H-XR
Machine head	Computer-controlled, 2-needle, lockstitch bartacking machine
Max. sewing speed	2,500sti/min*
Thread take up	Link type
Needle bar stroke	45.7mm
Thread	Spun thread, cotton thread #50~#30, B33~B46, Nm=120/3~60/3
Needle (at the time of delivery)	DP×17 (#21) #19~#21
Hook	Horizontal-axis 1.8 fold-capacity shuttle hook
Lift of the presser foot	21mm
Number of stitches	28, 36, 42 (selectable on the operating panel)
Needle gauge	43~70mm (1-11/16"~2-3/4")
Bartacking length	7~22mm (9/32"~55/64") ‹adjustable in increments of 0.1mm›
Bartacking width	1~3.2mm (3/64"~1/8") ‹adjustable in increments of 0.1mm›
Number of pieces of bartacking data that can be stored in memory	9 (99 patterns if optional EP-ROM is added)
Belt-loop width	9~20mm (23/64"~25/32")
Finished length of belt-loop	48~78mm (1-57/64"~3-5/64")
Machine time	1.2 sec./belt-loop (28 stitch)
Positioning of the front hook	Driven by motor (the distance between the hook can be established in increments of 0.01mm)
Bobbin winder	Electric type (provided as standard)
Lubrication	Centralized oil wick lubrication (machine head)
Lubricating oil	New Defrix Oil No.2
Power requirement and power consumption	Single-phase, 3-phase 200~240V/350VA
Compressed air and air consumption	0.5MPa (5kgf/cm²), 32Nl/min
Total weight	230kg
Dimensions	1,200mm (W)×800mm (D)×1,350mm (H: in its lowest end)
Height of the top surface of the throat plate as from the floor surface	920~1,250mm (provided with the adjustable stand capability)

Features

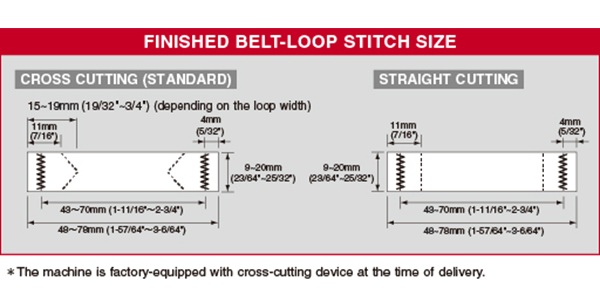

The applicable loop width for the cross-cutting device is increased. In this model, both the cross-cutting device and the straight-cutting device can now cut loop up to 20mm width.

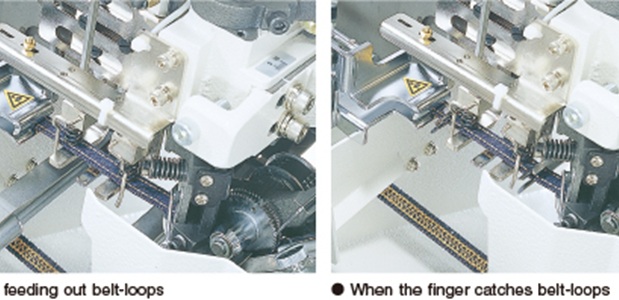

With the improved consistency in belt-loop supply action and re-try capability, the machine down time is substantially reduced

The machine time is 1.2 seconds per belt-loop (with 28 stitches)
