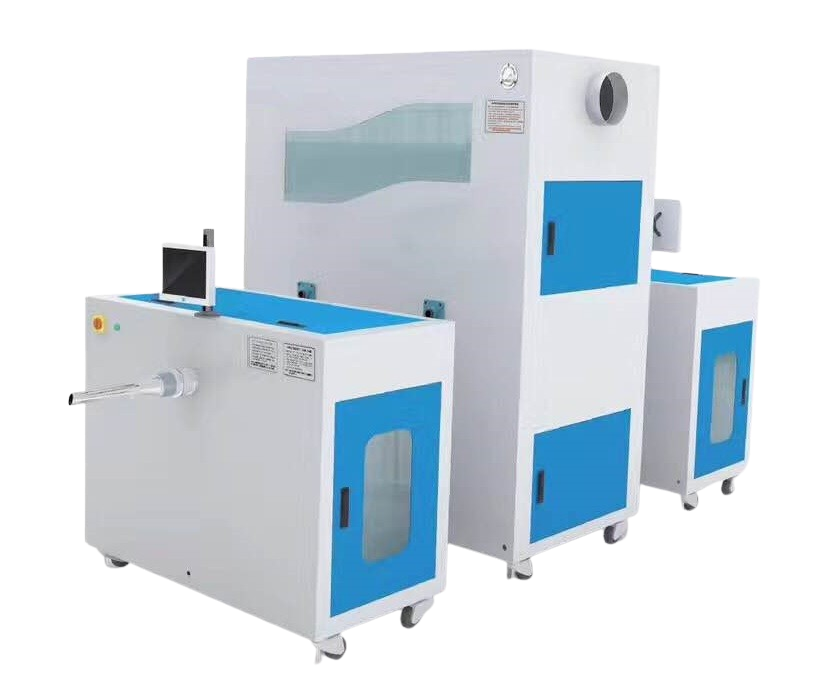

Automatic Cotton Filling Machine GT-C2040

Automatic Cotton Stuffing Machine C2040 with a stuffing speed 2-3 times faster than manual output helps businesses increase productivity and reduce product costs.

ข้อมูลจำเพาะ

Model: GT-C2040
Stuffing Outlets: 2
Number of scales: 4 scales
Speed of cotton stuffing machine: 15 - 30 grams/second
Stuffing container capacity: Approximately 12 kg (Cotton).
Machine accuracy: +- 0.3%
Minimum required supply pressure: above 0.5m³/minute .
Air compressor power: from 7.5 kw or higher (ensuring an adequate air supply source)
Recommended pressure level: 0.6-0.8 Mpa
Air storage tank volume: from 1m³ or more, stabilizes pressure level, prolongs the life of the air compressor.

คุณสมบัติ

MAIN FEATURES OF INNOVIC BRAND AUTOMATIC COTTON STUFFING MACHINE C2040

Exclusive design cotton outlet solves the stuffing problem for fabrics that do not breathe or special soft fabrics.

Stuffing range per fabric compartment is 5 - 150.0g, can operate on large or small fabric compartments.

Simple computer control operation, data storage, time control, and data adjustment.

Each machine has 2 stuffing outlets, one operator can operate, can be combined with 2 to 3 production lines.

WORKING PRINCIPLE

Based on a high-pressure air suction system to stuff cotton, the machine determines the amount of cotton sprayed out by time completely automatically, then adjusts the accurate amount of cotton to stuff automatically.
