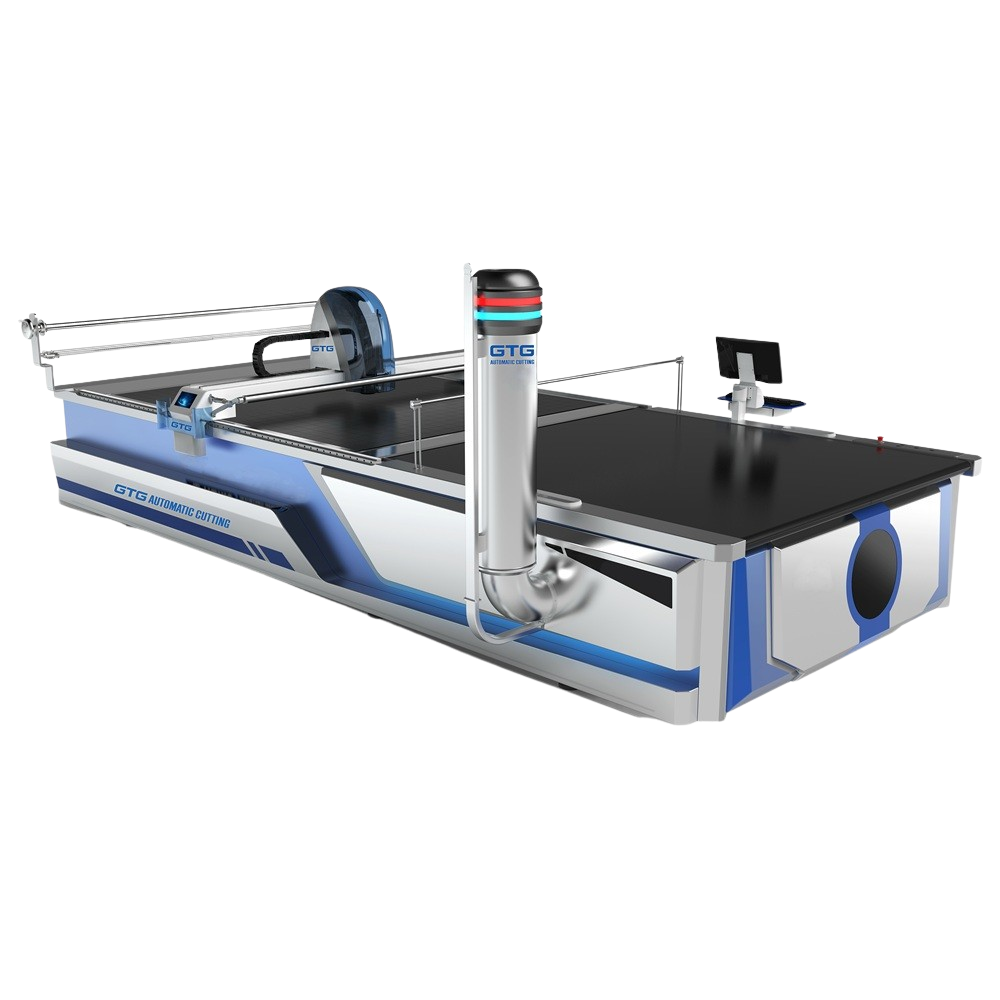

Automatic fabric cutting machine GT9-C2022

GT9-E2022 cutting machine is Ultra-fast fabric cutting speed 60m/min, can cut thickness of the layers after compression is 9 cm with smart moving and cutting system

Specifications

Modelm	GT9-C2022
Max Cutting Height	9cm (after vac-sorb)
X,Y Move Type	Precision gear rack drive
Cutting Window	length (no limitation)
Cutting Window	width (no wider than the fabric width)
Working Width (Y)	2000mm
Normal Working Length (X)	2200mm optional
Electricity	Three phase 380V, 30KVA,50~60Hz
Power Consumption	18KW max
CAD&CAM Connect way	Ethernet communication / USB Flash memory
Max speed of blade working	6000rpm/min
Compressed Air	0.55Mpa 160L/min
Cutting Speed	max.60000mm/min
Acceleration	0.8~1g (N/ Kg)
Noise Level	< 75 dbA
size: lenghtwidthheight	594027101890mm
Net weight	4100 KGS
Gross weight	5050 KGS

Features

GT9-C2022 cutting machine is Ultra-fast fabric cutting speed 60m/min, can cut thickness of the layers after compression is 9 cm with smart moving and cutting system helps to move and cut at the same time with out stopping make speed cutting fast than 20%, this will help to save cutting time and increase an additional 1-2% of the productivity.

Knive software intelligent cutting automatically recognizes marker starting points, curves, straight lines, corners, Notches, drill holes and adjusts the speed automatically at suitable speed for high quality.

GT9-C2022 can cut the parts that are close together without any gap ( 0 buffer) save fabrics from 1-3%

Sand belt sharpener systems have low cost and knife sharpening is sharper than grinding stone technology.

Multi-language software, easy to adjust, one-time setting of cutting parameters of different fabrics, viewing machine performance reports anytime, anywhere.

Using a linear motion guide system, it is extremely precise and durable.

Features

Integrated frame design, process by 540 high temperature stress annealing process at 12 hours.
The track mounting surface and the support surface of the bristle feeding mechanism, both process by the large CNC gantry milling machine, it ensures the accuracy in installation and improves the stability of the drive components in the state of high-speed motion.
The XY axis adopts precision gear rack drive, which increases the accuracy and stablity.
One-pice open mold beam, high-strength industrial aluminum extrusion molding, high-precision CNC gantry milling machine, improved stability and beauty..
The filter structure of vacuum pump improves the safety and lifetime of the air pump, it also reduces the environmental impact of cutting beds.
