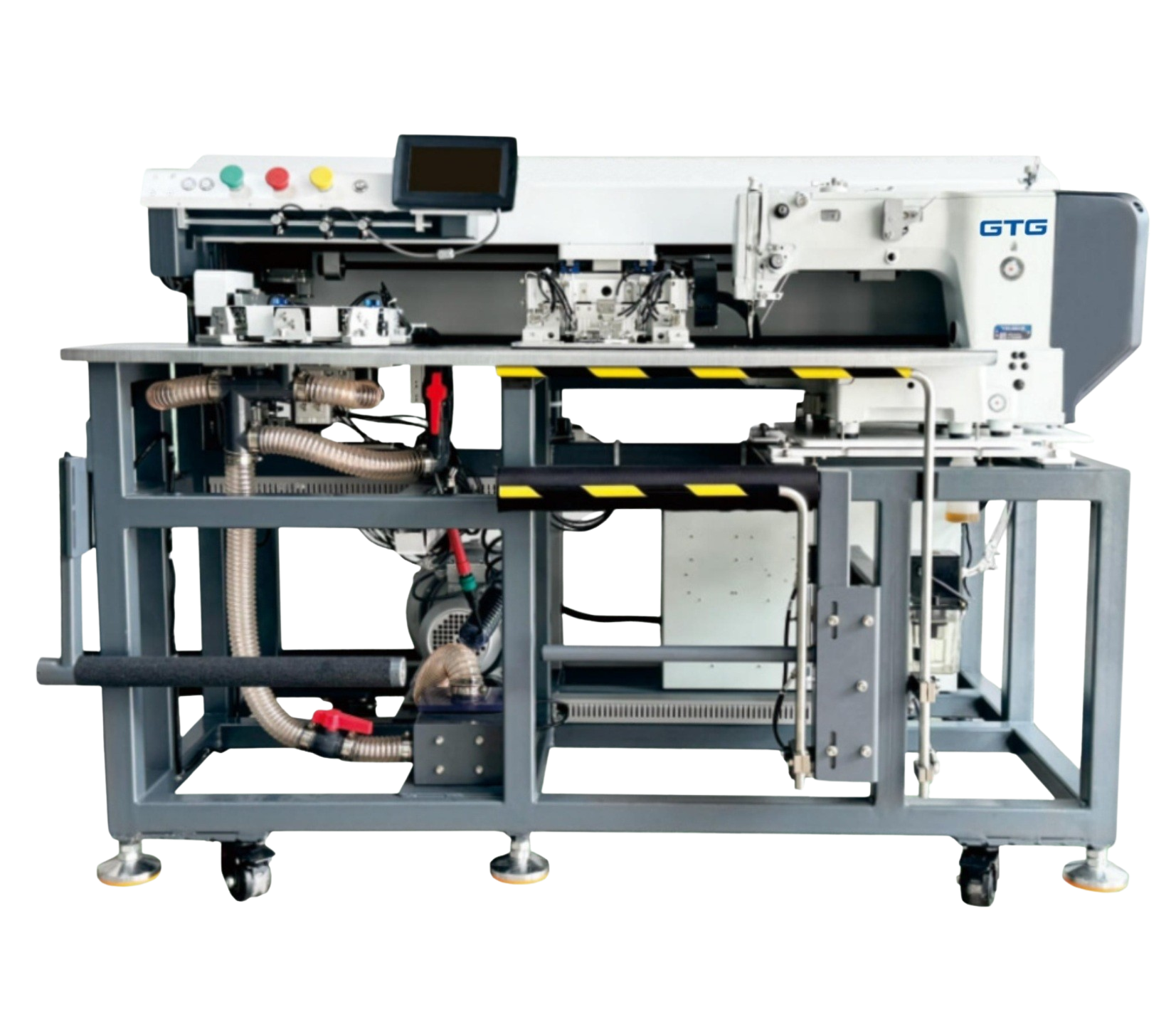

Automatic Pocket Setter Machine

Specifications

Model: GT-311-TD
Oil supply: Automatic oil supply
Needle: Knitwear: DPX17#9-#14 Shirt: DPX17#9-#12 Denim: DPX17#16#18
Needle pitch: 0.1-12.7
Presser foot lifting height: 0-11
Sewing range: MAX:200X200MM MIN:35-40MM
Air supply: 60L/min
Speed (S.P.M): 2800 r/min
Dimensions: 1900x1300x1300mm
No. of programs: 1000
Motor: 750W Direct drive servo motor
Die change time: 20s
Power supply: Single phase 200-240V
Power: 1.4kW
Air pressure: 0.6Mpa

Features

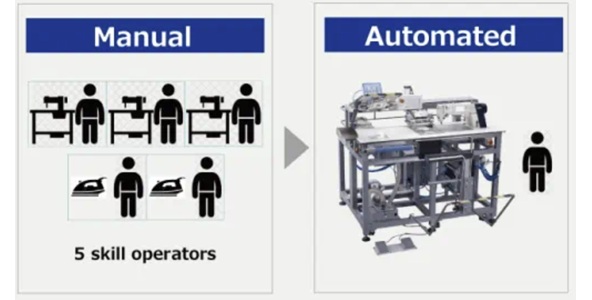

The process that used to require total 5 skill people can now be done by 1 non skill operator, 5-6 bags per minute, about 300 bags per hour,8 hours,2200-2400 bags per day.

Quick mold change in one minute, fast transfer, suitable for small batch production; Automatic cotton padding, cloth padding function (anti-washingand washing rotten bag mouth cloth)optional.

Incorporates various innovative technologies to handle heavy, light, elastic, and soft fabrics, ensuring smooth and aesthetically pleasing pocket stitching for shirts, casual wear, jeans, suits, and sportswear.

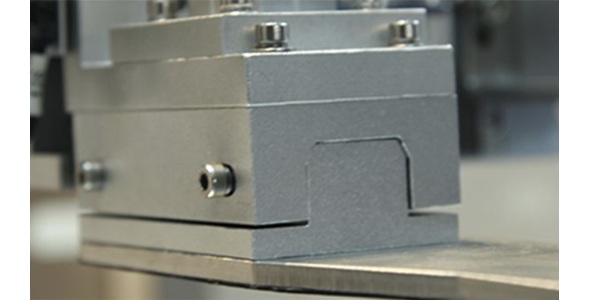

Double Suction Pressure Plate: Ensures flat and consistent pocket edges, promoting stability and uniformity.

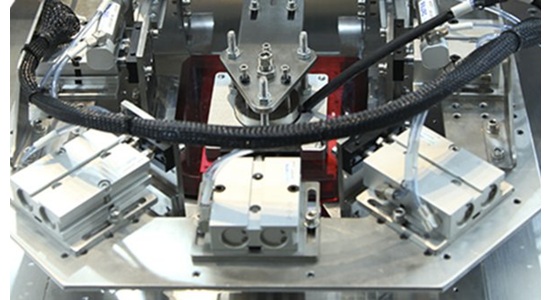

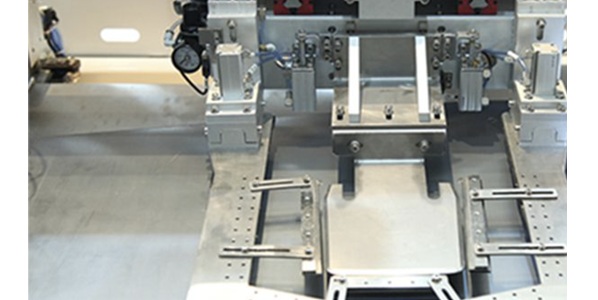

Automated Stitching: Equipped with adjustable dies, enhancing work efficiency while maintaining high-quality results, making it user-friendly and easy to handle.
