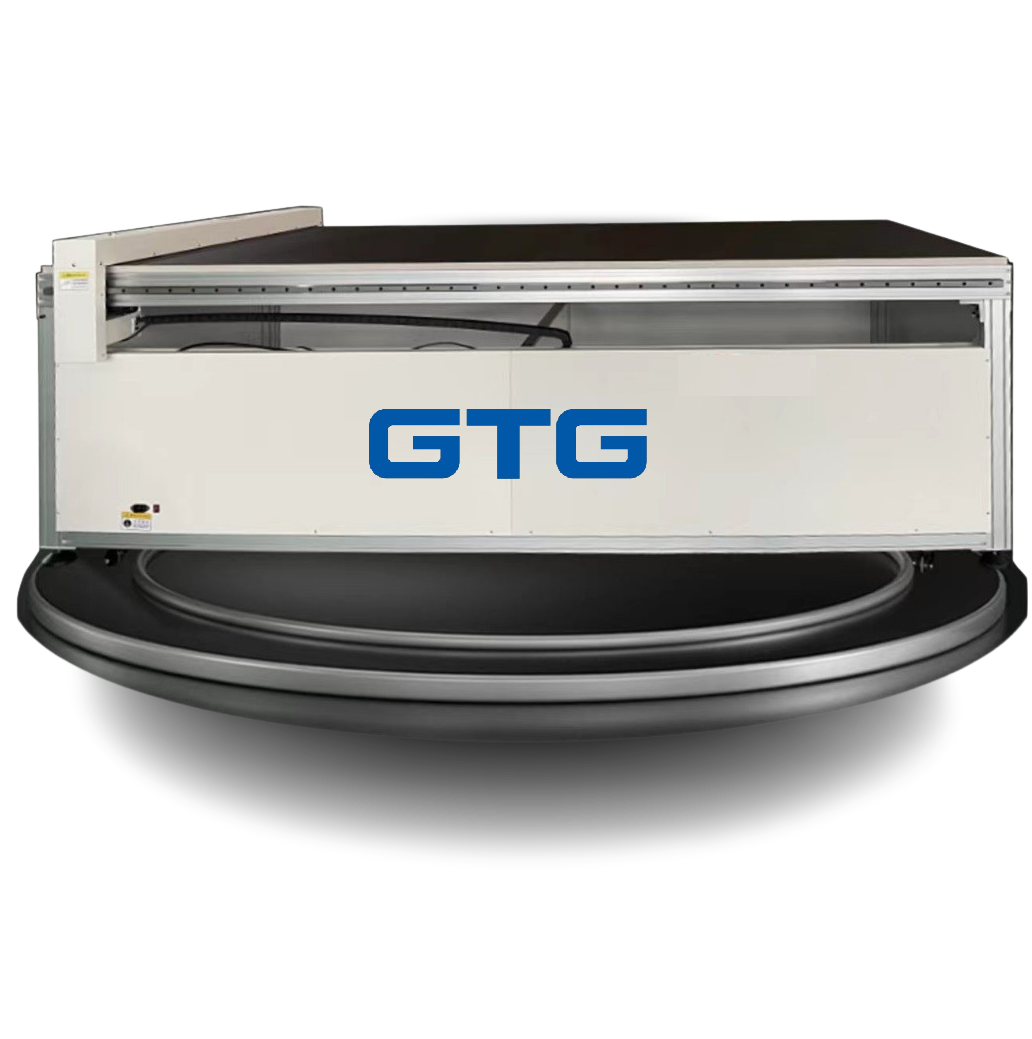

Flatbed scanning Digitizer GT-1220H

Large format GT-1220H scanning machine application: scan all types of patterns, all materials in the fashion, footwear, handbag, furniture industry, digitize leather pieces into the computer

ข้อมูลจำเพาะ

Active area: 1,200 mm x 2,000 mm (47" x 78")
1:1 pattern copying ratio with ± 0.25 mm deviation
Scanning speed: 2,000mm/minute
Maximum material thickness: 5mm
Identification Accuracy: ≤1mm
Scanning Resolution: 150-300DPI
Computer connection: USB port
Compatibility: DXF for Gerber, Lectra, Optitex...
Power Supply: Single phase AC220V±10% 50/60Hz
Dimensions: 2,500 x 1,500 x 800 mm, weight 65kg.

คุณสมบัติ

- Large format GT-1220H scanning machine application: scan all types of patterns, all materials in the fashion, footwear, handbag, furniture industry, digitize leather pieces into the computer... with just one click on the button on the machine, automatically export to dxf, plt to the computer for importing into pattern design software, or directly output to printer, cutting machine. 1:1 pattern copying ratio

- One Click auto digitize, simply press the button to digitize the pattern into a dxf/plt file

Scanning resolution 150-300DPI by HD scanning modulm

Servo motor Scanning speed up to 7200mm/minute.

KNK linear module

Vacuum table
