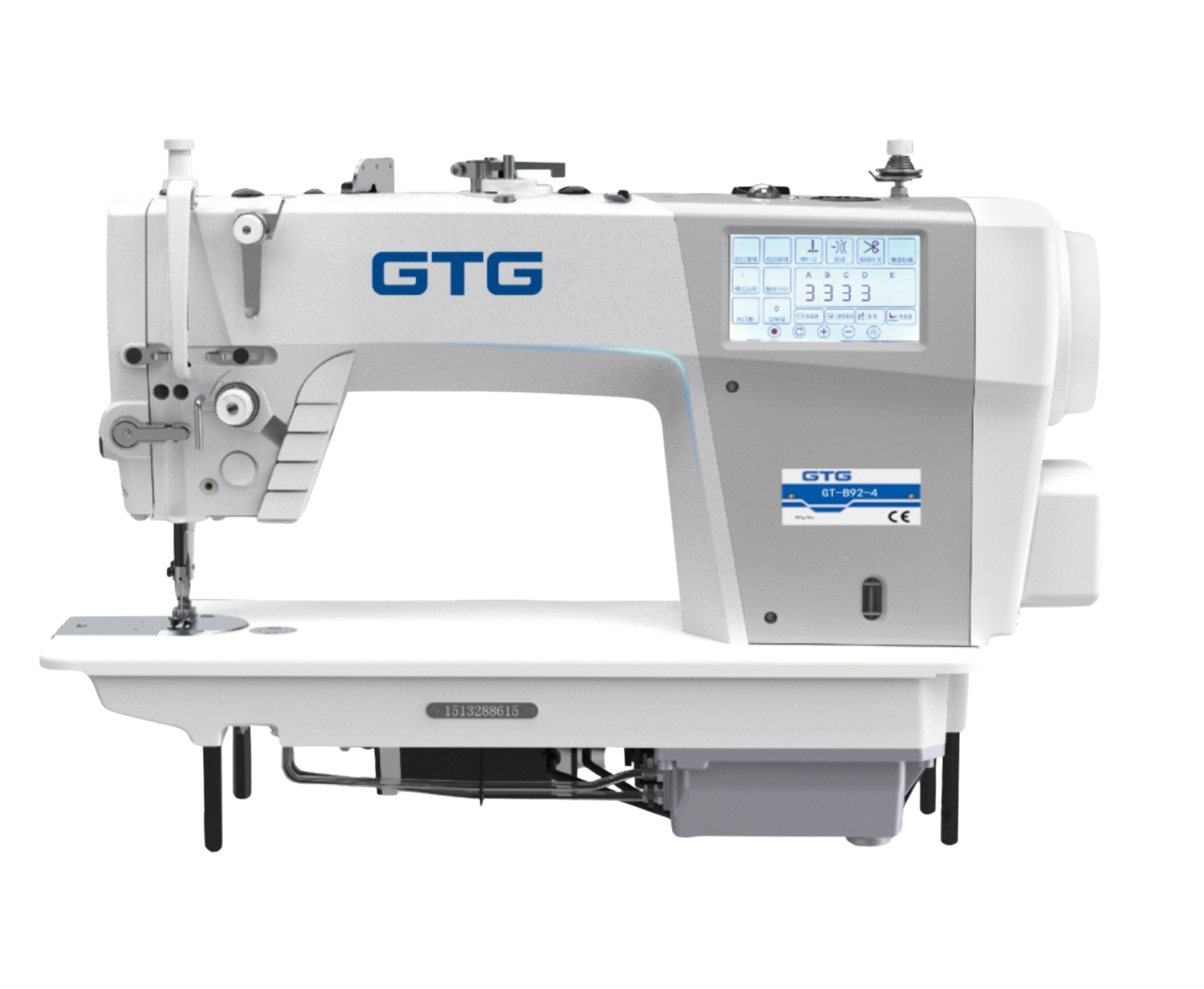

Needle Feed Lockstitch Sewing Machine

Digital Lockstitch with Needle Feed

Specifications

Model	GT-A6F	GT-A6F-PK
Oil supply	Automatic oil supply	Automatic oil supply
Puller		√
Needle	DBx1	DBx1
Stitch length	0-5mm	0-5mm
Presser foot lifting height	6-12mm	6-12mm
Thread trimmer	√	√
Reverse stitching	√	√
Automatic presser foot lifter	√	√
Light	√	√
Medium	√	√
Speed (S.P.M)	4500 r/min	4500 r/min
Dimensions	665x260x625mm	665x260x625mm

Features

Intellegent Needle Feed Lockstitch Sewing Machine with Stepping Motor, innovative appearance and structure, strong and smooth outline. Stepping motor controls stitch length directly, can be accurate to 0.01mm Stepping motor controls back stitching, noiseless sewing experience, forward and back stitching trace in superposition; Front and back can make close stitch to lock the thread ends, to avoid the thead ends loose and bird nest, Pre-set 9 stitch patterns, suit for different garment requirements Universal thickness, from 10 layer denim fabric to single layer knitted fabrics, stitch quality is consistent, no need to adjust nipping device.

Uses dry head.
Automatic lift of presser foot.
Automatic thread trimming.
Automatic needle positioning.
Automatic stopping point of needle up or down.

+ All-in-one integrated design: machine head, motor, control panel, control box, no need to install control panel, control box, etc... always at the forefront in grasping and applying the most advanced modern technologies, integrating control system and machinery into a unified whole, tighter assembly structure design. Also equipped with a new type of coupling shaft, which helps the machine operate stably, increase machine life, no vibration, low noise.

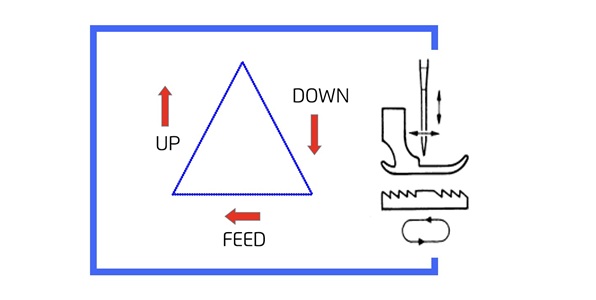

Needle feed: Compared to normal feed with only the movement of the feed dog, this system allows you to drag light / medium fabrics such as sheets and curtains thanks to the needle bar that moves together with the material.

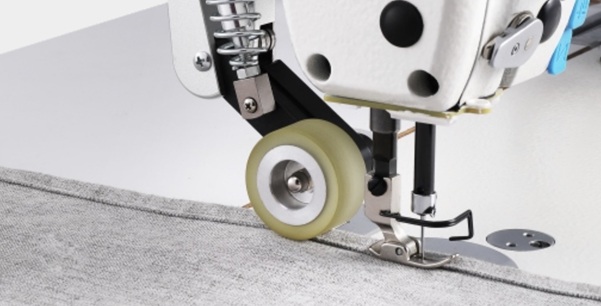

Integrated Puller (PK): New digital puller completely integrated into the machine (control box included). The digital controls are also placed directly on the machine display.

Adjustable Computerized Foot Lifter: Easily adjust lifting height and speed with the computer-controlled foot lifter (0-13mm). Delicate fabrics are protected with the slow pressure foot function.
