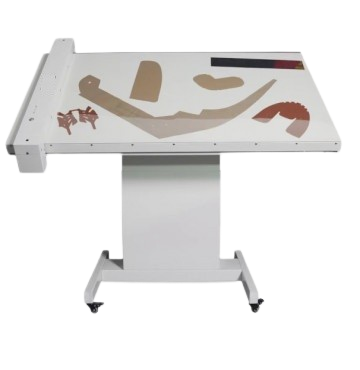

Scanning Digitizer

Spesifikasi

Active area: 900 mm x 1,200 mm
1:1 pattern copying ratio with ± 0.25 mm deviation
Scanning speed: by hand
Maximum material thickness: 5 mm
Identification Accuracy: ≤1mm
Scanning Resolution: 150-300DPI
Computer connection: USB port
Compatibility: DXF for Gerber, Lectra, Optitex...
Power Supply: Single phase AC220V±10% 50/60Hz
Dimensions: 1,500 x 1,100 x 300 mm, weight 25kg.

Fitur

GT-9012 Scanning Digitizer applicable for clothing, furniture, automotive, hometextile, bags & suitcases, shoe-making, toys, medical industries, etc. All kinds of paper pattern andphysical product's panel shape digital input.

Adopt line scanning mode, no need extra light compensation, all-weather reliable use.

Scanning resolution 150-300DPI, high definition panoramic 1:1 image to ensure effective identification of various contours/notches/inner holes.

According to the actual sample, the scanning height can be set through the touching screen, to adapt the different thickness of the material.

According to the color of scanning pieces, background color can be quickly switched, flexibly respond to different materials.

Fast speed: Handles large workloads in a very short time, saving up to 90% of digitizing time.

Output general DXF file format, compatible with most of CAD software in the market.
