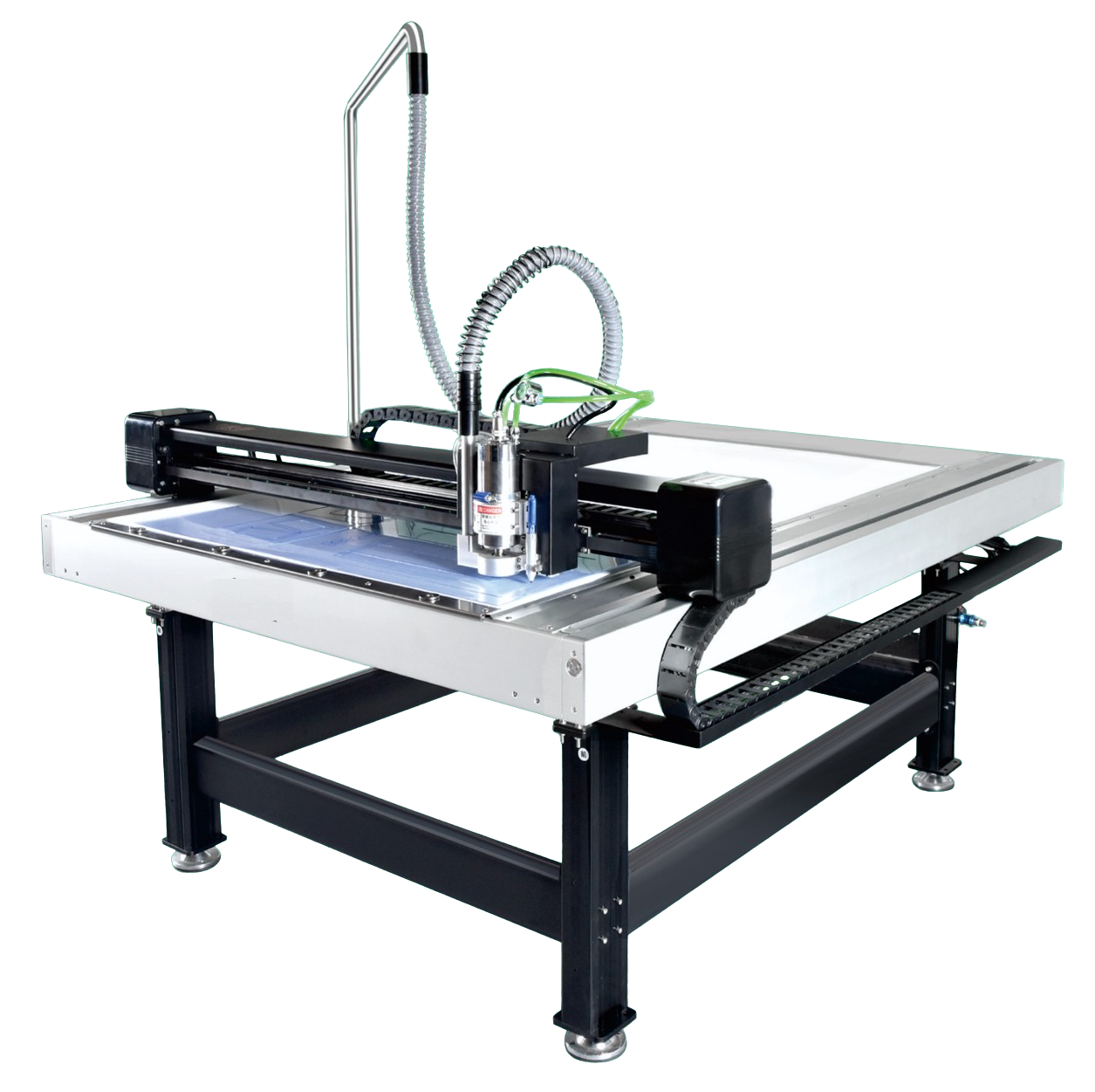

Template cutting machine

Template producing for clothing, sofas, bags, shoes, hats, gloves, toys, car interiors, etc. Widely used in non-metallic sheets such as PVC board,epoxy board, insulating board, acrylic board and cardboard materials etc.

Spesifikasi

Model: GT-T1215
Cutting size: 1500mm x 1200mm
Control mode: Closed-loop and Servo Motor control
Cutting speed: 60cm/s - 100 cm/s
Material cutting thickness: 0.5mm - 1.5mm
Cutting materials: PVC, PET, ACRYLIC, PLASTIC
Thickness: 0,5 mm - 6mm
Repeat accuracy: ≤ 0.1mm
Data input: USB / LAN
Language: HP-GL
Power supply: 220V / 50HZ
Vacuum power: 2.2 kW
Machine size: 2100*1670*1100mm
Environment: 10°C to 40°C, humidity 10 - 80%.

Fitur

Adopt Taiwan original MEANWELL dual power supply to guarantee safetye, Japan Belt.
Automatic speed slow when machine cuting cuver.

Tungsten steel milling cutter is dedicated to template cutting; drilling knife is specially processing technological holes at diameter of 1-6mm; lettering knife and marker pen are respectively suitable for template and pattern marking.

The dual-fixing method of ultra-powerful suction system and fixture tools, solves the problem of double-layer or small-piece material cutting, and reduces the waste of residual material.

Standard configured tungsten steel milling knife, lettering knife and drilling knife for template processing; Optional marker pen and paper cutting blade, used for pattern drawing and cutting.

New flexible drag chain design; Industrial bucket vacuum cleaner, vacuuming quickly and thoroughly, getting rid of the traditional vertical suction pipe design; equipped with guide rail guard and X-axis dual guide brush dust-proof device, effectively protects machine from dust.

Automatic knife pressure adjustment function, no need to reset when replacing the template, can protect the countertop.

Equipped with one industrial cutting felt, with strong air permeability, high abrasion resistance and cutting resistance.
