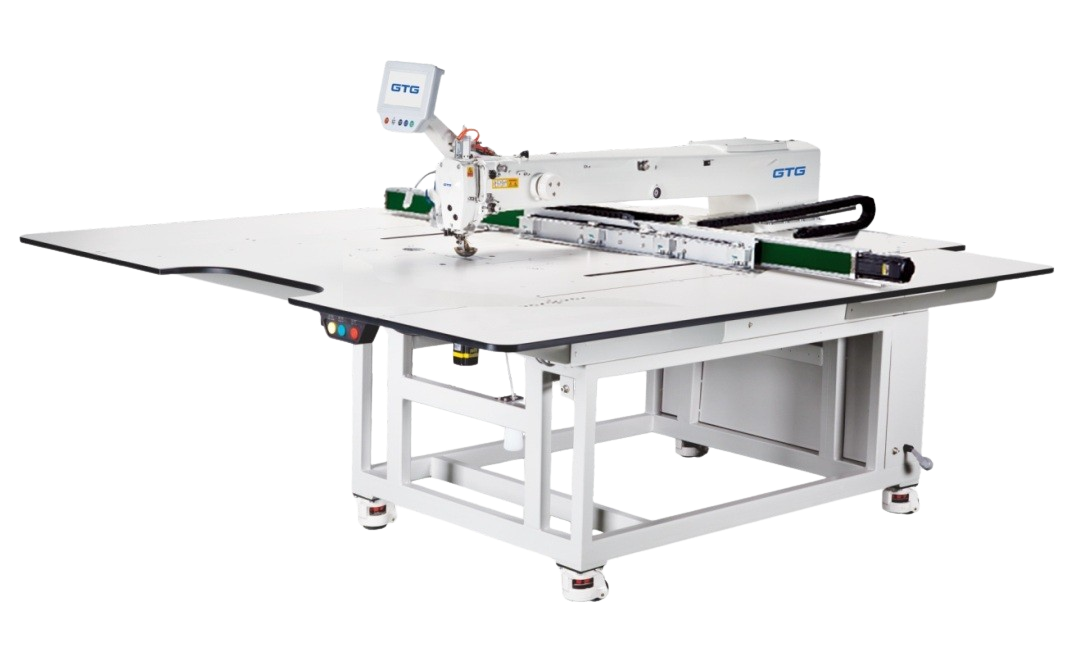

Template sewing machine 90x130 cm

GT-1390-HLS Automatic template machine, humanized color LCD touch screen, easy to understand the operation, any peration can be carried out on the touch screen, there are Chinese and English language for users to choose.

លក្ខណៈបច្ចេកទេស

Model	GT-1390-HLS	GT-1390-HLX	GT-1390-HLS-JG
Needle	DPX5 7# - 23#
Sewing area	900x1300 mm
Control Box System	Xinghou
Stitch length	1-12 mm
Presser foot lifting height	5.5-15 mm
Max.Speed (S.p.m)	200 - 3000
Y direction screw drive	√	√	√
X direction screw drive	√	√	√
FRID radio recognition module	√	√	√
Laser option			√
Vacuum option		√
Hook	2 time Hook
Storage of templates/pattern	From the original 999 upgrade to unlimited
Power/Voltage	1500W/220V	2000W/220V	3500W/220V
Dimensions	2130x1150x1260mm

លក្ខណៈពិសេស

Electronic tag identification device, can automatically identify the template when changing patterns, high accuracy, time saving and labor saving; Built-in motor press foot follow-up device, optimize the transmission structure, reduce parts wear, effectively avoid mechanical noise.
When encountering high and low fabrics, press foot automatically raise or drop, adapt to different thickness of fabrics, widely used.
Suitable for clothing (such as down jacket, cotton jacket, sportswear, casual wear, hoodie) case, car seat, office seat sewing.

Description

Advanced pattern field machine with big sewing range 130x90cm, advanced for different materials, with double screw transmission. Remote PC programmable.

Easy Insertion of Sewing Designs

The sewing pattern can be created using the software on a personal computer and can be easily imported directly via the USB interface.

Screw transmission

The double screw transmission for the Y direction which allows to improve efficiency unlike the belt transmission where maintenance is greater.

Adjustable Presser Foot

Prevents stitch skipping, thread breakage, prevents product damage and meets the sewing requirements of different fabrics.

RFID reader

The radio frequency reader reads disks where you can save the drawing of sewing endless times. When you approach the template, the machine will automatically change the drawing.

Touch Display

The quick buttons allow you to quickly activate the most used functions: emergency stop, air cleaning, descent of the template clamps and start of sewing.
