លក្ខណៈបច្ចេកទេស

Power supply

AC 220V 50/60Hz

Ultrasonic frequency

35KHz

Power consumption

2500 W

Maximum speed

1-20 m/min

Ultrasonic horn width

35 mm

Dimensions

1200(L)*600(W)*1380(H)mm

Net weight

98kg

លក្ខណៈពិសេស

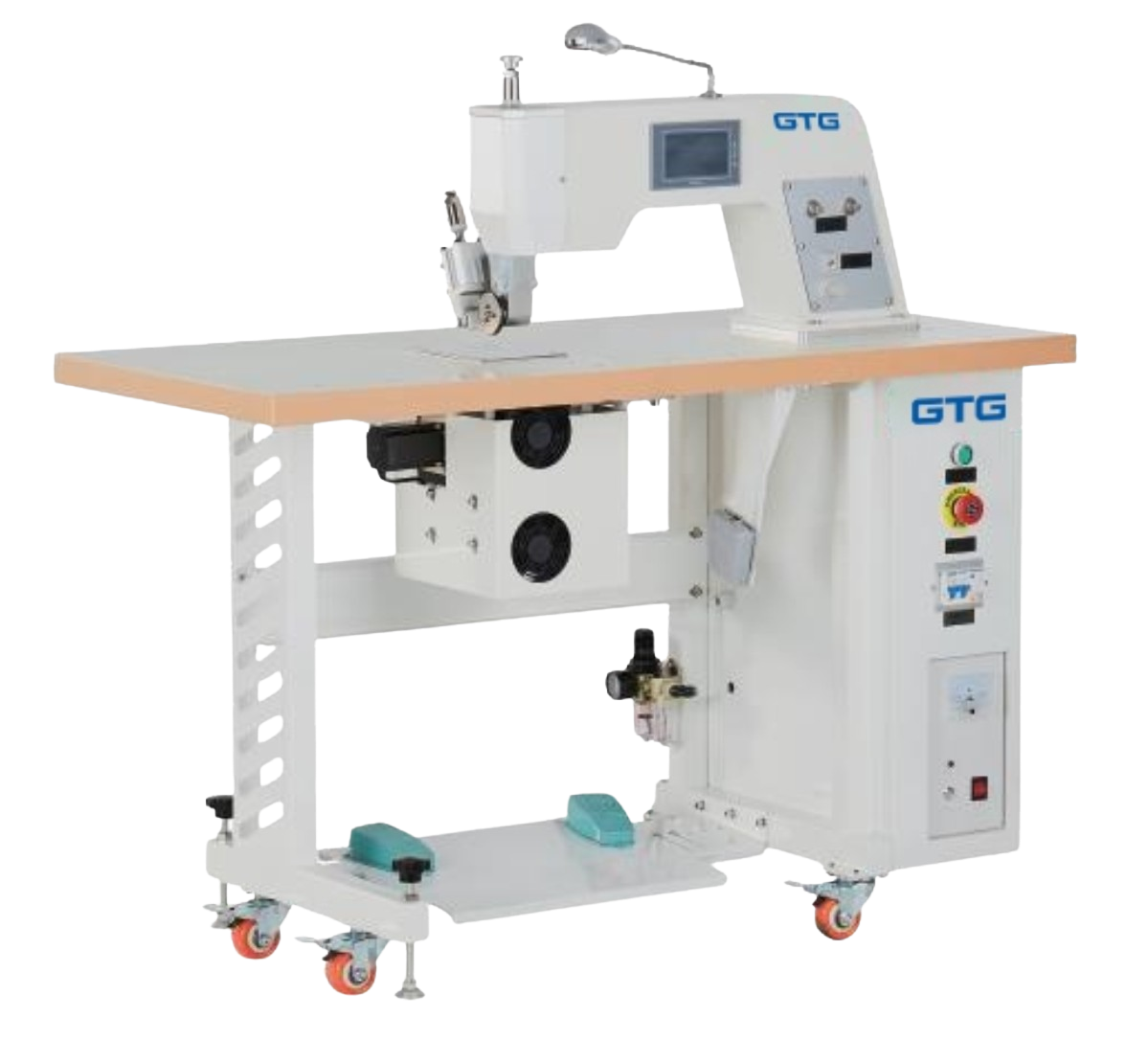

Ultrasonic GTG OY11 welding and cutting machine is a type of machine used for both cutting and welding of sewing lines, the machine has very high durability and stability, operates flexibly and has a very reasonable price.

  • New exterior design, easy adjustment of fabric parameters, easy to use with various types of stretch fabrics.
  • Quiet 35KHz ultrasonic system with high hardness transducer.
  • Improved pressure cutting adjustment structure and precise pressure control.
  • Easy-to-adjust flower roller design.
  • PLC system makes operation easier and more stable, software upgradeable.

កាតាឡុក

Catalog machine Ultrasonic Welding Machine GTG

Download catalog
