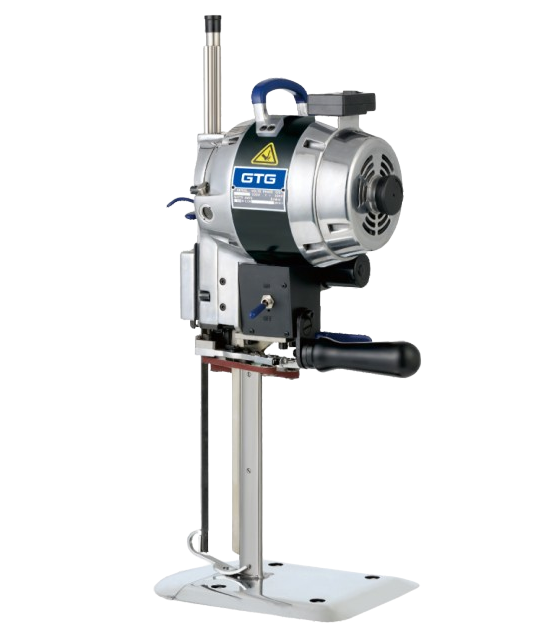

Straight Knife Cutting Machine GT-3

The machine features a low profile, polished, streamlined baseplate is designed to reduce friction and distortion in the lay, regardless of the number of plies. Constructed of superior quality materials to ensure durability and longevity.

Specifications

Model	GT-3-8	GT-3-10
Blade Sizes	8 inch. (20.3 cm)	10 inch. (25.4 cm)
Cutting Hight	(16.5cm) 7.5 in.	(21.5cm) 10 in.
Power	750W
Rotate sped	3300 r/min
Weight	34 lbs. (15.4kg)
Blades	Standard: Carbon Steel Optional: High Speed Steel, PTFE Coated, Wave Edge, Wave Groove, Angled Tip
Belts	Standard: Medium Grit Optional: Fine, Coarse, Rough
Options	Micro Fog, Plastic Master, Auto Stop Note: Autostop, Micro Fog and Plastic Master are only available in 6 in. and 8 in.
Power Supply	220V/50HZ

Features

Power to weight ratio offers easy handling and maneuvering, even for the tightest radius
Low-profile baseplate and narrow silhouette standard make cutting of intricate patterns and tight turns simple
Perfect fit and continuous running with cross heads, crank and knife slides that are machined to a tolerance within .0005″(0.0013cm)
Simple handling of the machine due to its low center of gravity
Low maintenance requiring only daily lubricating with the easy-to-use One Shot single-reservoir oiling system
